Your location  Home -> Product  ->  Quartz crystal resonator  ->  Quartz crystal resonator DIP

【Origin Pic】

Quartz crystal resonator DIP

It is very small SMD crystal unit. High precision, high frequency stability. Excellent static resistance and environmental protection characteristics. It is applied to smart watch, bluetooth, pda, dsc, pc.rohs compatible / lead-free.

Consultative
Contact hotline 86-755-88914319
Product Details
Product parameter
Product parameter
Frequency range 3.2.HZ-60HZ Adjust the frequency difference ±20ppm/±10ppm
Temperature frequency difference ±20ppm/±10ppm Operating temperature -20°-+75°/-40°-+85°
Storage temperature -40°-+85°/-40°-+125° Static capacitance 3pF MAX
Excitation power 1-500μw Load capacitance 8pF,10pF,12pF,20pF
Insulation Resistance 500MΩ@DC100V Annual aging rate ±3pm/year MAX
Quartz Crystal Unit

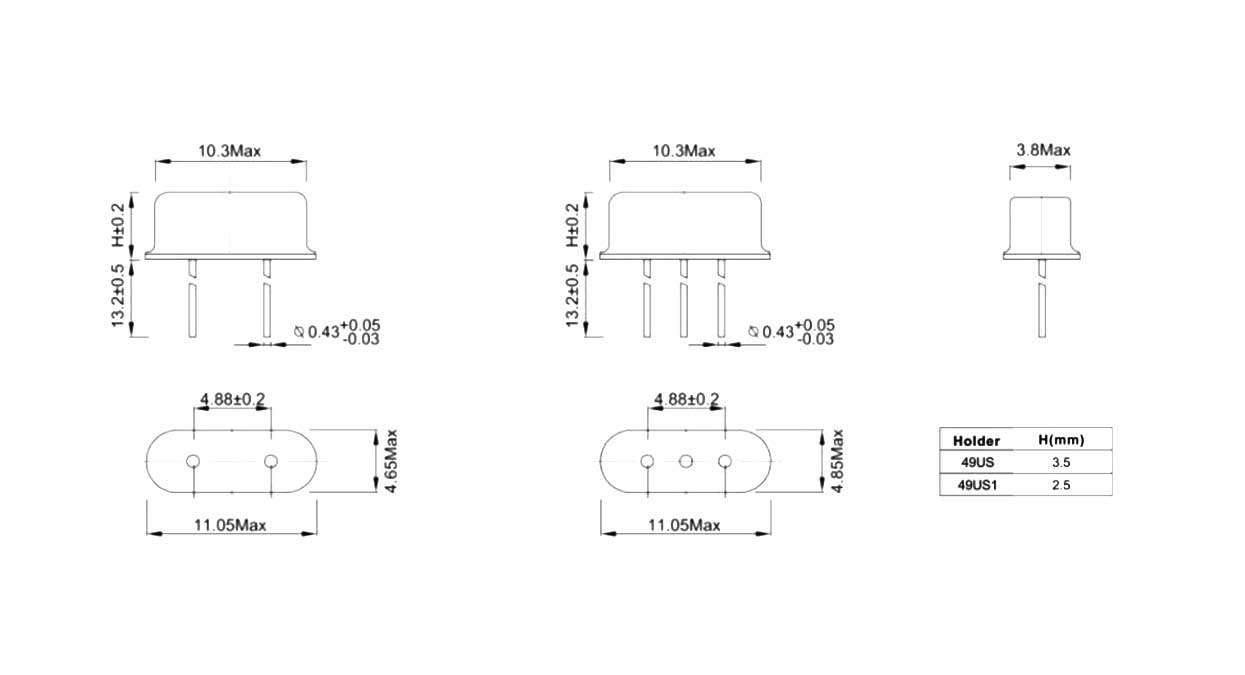

DIMENSION（Unit:mm）
